 2442 -   Transit, Buff & Buff, 2F Mining Transit, with auxiliary telescope, (both scopes
                are inverted image) 5" one minute horizontal circle, 5" one minute vertical circle,
                with lens caps, sunshade, and box. ca.1904. Excellent condition
                PHOTO   PHOTO    PHOTO    PHOTO          $4000.00

 2443 -   Transit, C.L.Berger & Sons, 4C Mining Transit, with auxiliary telescope, (both
               scopes are inverted image) 4" one minute horizontal circle, 4" vertical circle.
               10" tall, with Berger extension leg tripod, lens caps, sun shade, and box.
               Originally sold to Lallie Surveying Instrument and Supply Co., Denver, CO.
               on August 26th 1910. Smallest of the Berger transits.  Excellent condition.
               PHOTO   PHOTO    PHOTO    PHOTO    PHOTO      $4000.00

.
2449 Mining Transit, C. L. Berger & Sons, model 4½ H Wet Mine
4½" 1 minute horizontal circle, 4" 1 minute enclosed vertical circle
graduated on the edge. With Auxiliary telescope, 2 lens caps,
right angle eyepiece prism, and home made box using interior
supports from the original box. Instrument is in good condition.
Originally sold in 1936 to the Hughs Owen Co., Montreal, Canada
a Berger dealer.    PHOTO    PHOTO   PHOTO    PHOTO
PHOTO    PHOTO  $2500.00
.

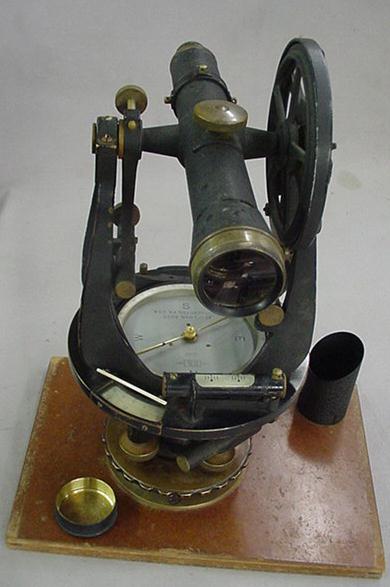

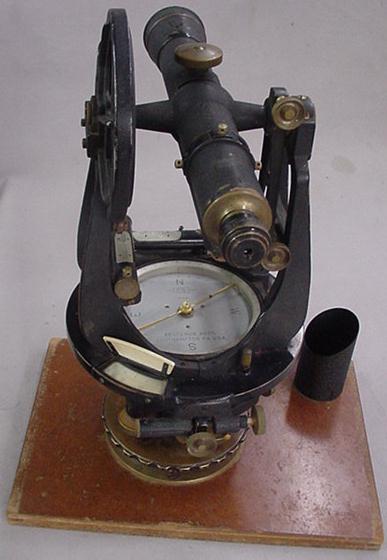

2454 Transit, Kegelman Bros., Huntington Valley (Philadelphia), PA.
  Model 101, 6¼ inch 30 second horizontal circle, 5 inch 1 minute vertical circle.
  With Stadia cross hairs, sun shade, lens, box, copy of manual and original catalog sheet.
  made around 1955 by George Kegelman who worked for Heller & Brightly until 1946.
  In good useable condition , calibrated. Very few of these transits were made.
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO PHOTO  PHOTO  PHOTO$1500.00
.
2466 Pibal Theodolite (Balloon Theodolite), Keuffel & Esser, Shipboard Theodolite,
made in 1939, In excellent + condition, complete except for the counter weight,
and special tripod.    PHOTO     PHOTO     PHOTO     PHOTO
  PHOTO     PHOTO     PHOTO    $600.00
See this link for some more details; http://www.csulb.edu/~mbrenner/balloon.htm
.

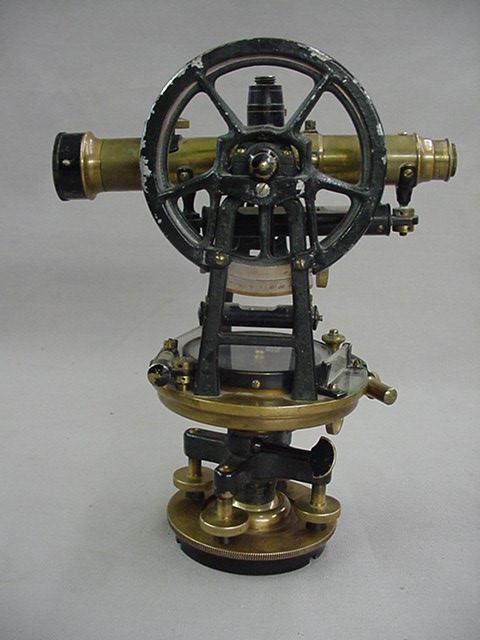

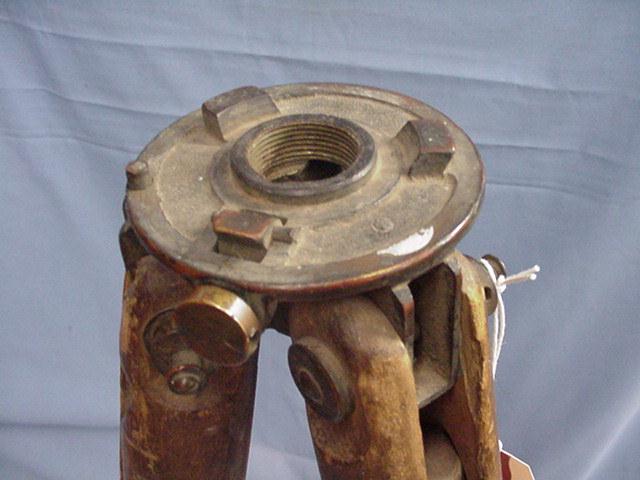

2470 Transit, Lietz, Mining transit, model 12 Mountain and Mining Transit, with 1 minute 4 inch horizontal circle,
  1 minute 4 inch vertical circle, 8 inch telescope with 1:100 ratio stadia, 2½ inch compass needle,
  with counter weight, lens cap, and sunshade for main telescope, Lens cap and sunshade for the
  auxiliary telescope. AUXILIARY TELESCOPE MISSING. With box, Uses friction coupling for
  tripod, extension tripod is included. Cosmetic condition is average, mechanically excellent. ca 1918  $1200.00
  PHOTO  PHOTO  PHOTO  PHOTO   PHOTO   PHOTO  PHOTO  PHOTO  PHOTO
  PHOTO  PHOTO  PHOTO   PHOTO   PHOTO  PHOTO   PHOTO   PHOTO   PHOTO   PHOTO   PHOTO
.
2476 Transit, A. Lietz, San Francisco, model #3 Engineer's Transit, 6¼" 1 minute horizontal circle,
SOLD 5" one minute vertical arc. serial number 13XX ca.1900, Post on telescope for Saegmuller
  solar attachment. Seldom found in whole condition 7½ pound all aluminum transit except thumb
  screws and a few other small parts, repairs made to lower tangent motion clamp assembly
  Includes rare stiff leg tripod which has friction coupling tripod head to fit transit base.
  scarce and in very good condition. No box or other accessories. PHOTO   PHOTO   PHOTO  PHOTO  PHOTO
  PHOTO   PHOTO   PHOTO   PHOTO   PHOTO   PHOTO  PHOTO   PHOTO  PHOTO $950.00
.

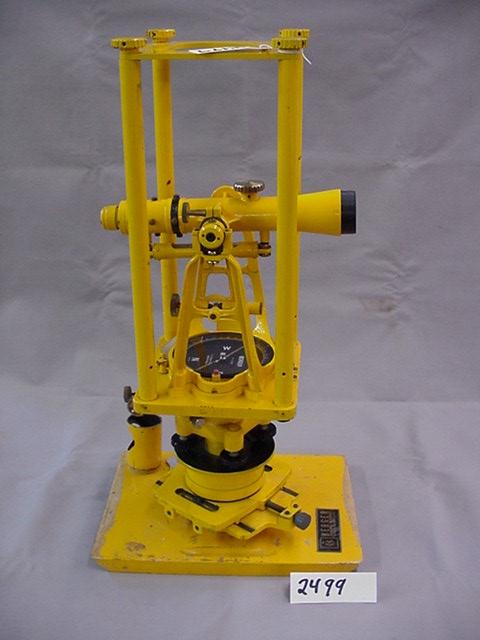

2499 Transit, Berger, 6 minute horizontal circle, Excellent condition,
. Built for Sperry Corp. for calibrating large aircraft compasses,
. first model ca.1950's, 3½" X 8 thread, with reflector shade,
. box board and lateral adjuster. NO BOX   PHOTO  PHOTO  $550.00
.
2572 Light, Keuffel & Esser, for model model KE/G6 Degree Theodolite,
  with fiber optic cable. K&E's tooling sample. PHOTO   $50.00
.

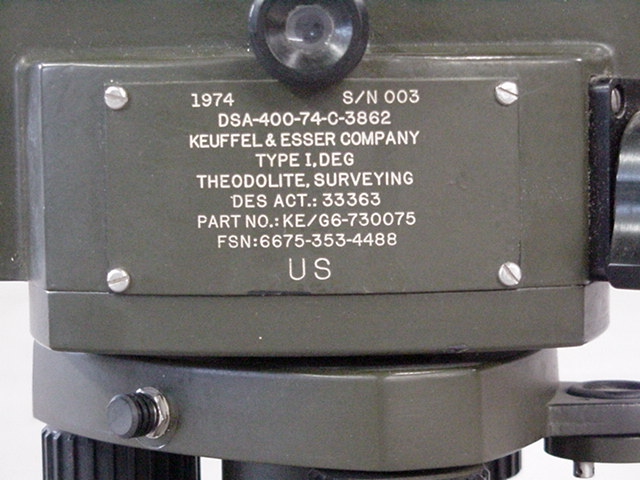

2573 Theodolite, Keuffel & Esser, model KE/G6-730075, Degree Theodolite.
. US Army Prototype, serial # 003, made in 1974. Has a coincidence vial
. level on scope. Major scope parts, lenses, and circle reading microscope
. are missing, Except for the missing parts it is in excellent condition
5/8" X 11 threads.  With accessory pack (see photos) containing manual,
. right angle prisms, tools, lighting, compass, battery box, cable, hand lamp,
  etc. serial number 003.   PHOTO  PHOTO  PHOTO  PHOTO
. PHOTO  PHOTO  PHOTO  PHOTO      $700.00
.
2574 Accessory Pack, Keuffel & Esser, model KE/G6 theodolite (see photos)
  serial number 002, with battery box (with some corrosion),
  right angle prisms, tools, lighting, compass, hand lamp,
  PHOTO  PHOTO  PHOTO  PHOTO      $300.00

2575 Tribrach, Keuffel & Esser, for model model KE/G6 Degree Theodolite,
  It will fit any Theodolite or accessory that uses the 34mm centering system.
  ⅝" X 11 thread,                           PHOTO  $100.00
.
2576 Battery Box, Keuffel & Esser, for model model KE/G6 Degree Theodolite,
  This was a tooling sample of K&E serial number 1, No cables included
    PHOTO  $100.00
.
2582 Theodolite, F. E. Brandis & Sons, 7" 10 Second horizontal circle, 14 inch scope, inverting image
Triangulation Theodolite, with striding  level, sun shade. lens cap, reflecting sun shade. box with key,
SIGNED: President of Borough of  Richmond.!!  ca. 1906. 17 inches high, A LARGE IMPRESSIVE
 INSTRUMENT IN EXCELLENT  CONDITION.
. PHOTO  PHOTO PHOTO  PHOTO  PHOTO  PHOTO  $3000.00
.

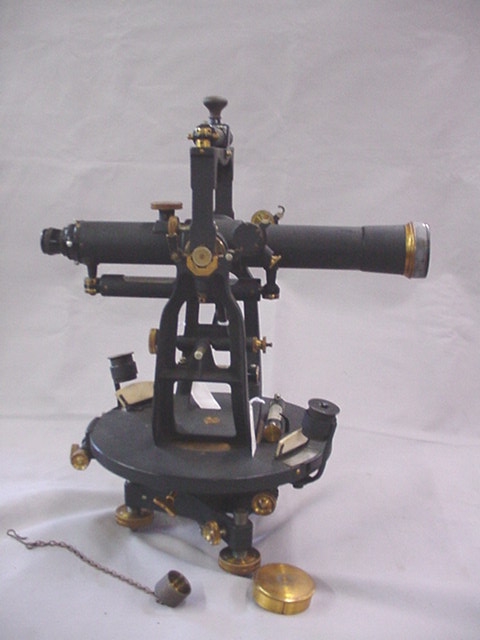

2838 Theodolite, Keuffel & Esser, model 5088 Special, Triangulation,
10 second 8 inch horizontal circle, ca. 1932, Serial number 61XXX,
in two boxes, with lens cap, sun shade and tripod,
.  Near New condition.    PHOTO   PHOTO   PHOTO
  PHOTO   PHOTO   PHOTO   PHOTO    $6000.00
.
2850 Tacheometer, Otto Fennel $ Shone, Shift type, with striding level,
adjusting level, no box, early, rare and unusual, in great condition
and great looking.   PHOTO  PHOTO  PHOTO   $3000.00
.
2880 Theodolite, F. E. Brandis & Sons, Triangulation Theodolite, 10 second
8" horizontal circle, inverted image, three screw leveling,
on box board, with lens cap, sun shade, and Berger 12 oz. plumb bob
. ca. 1907.  no box, In excellent condition.   PHOTO   PHOTO   $2500.00
.
3993 Ball Base Leveling Head, Zeiss, 73-0394, ⅝" X 11 thread, for use with
  Zeiss Th2, Th42, Th43, Rta4, Theodolites and accessories. It will fit
  any Theodolite or accessory that uses the 34mm centering system.
  PHOTO  $300.00
.

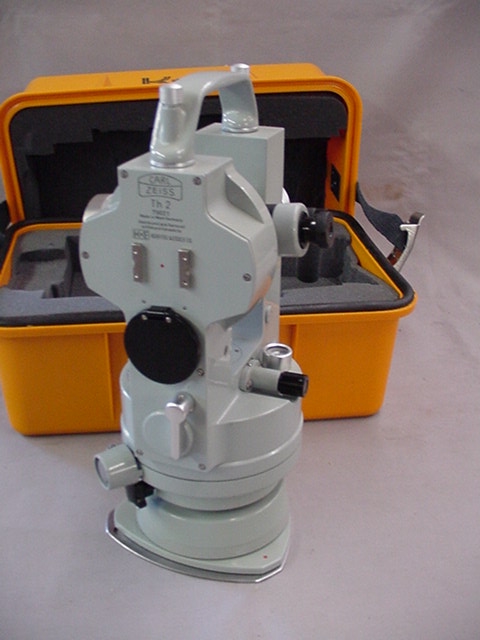

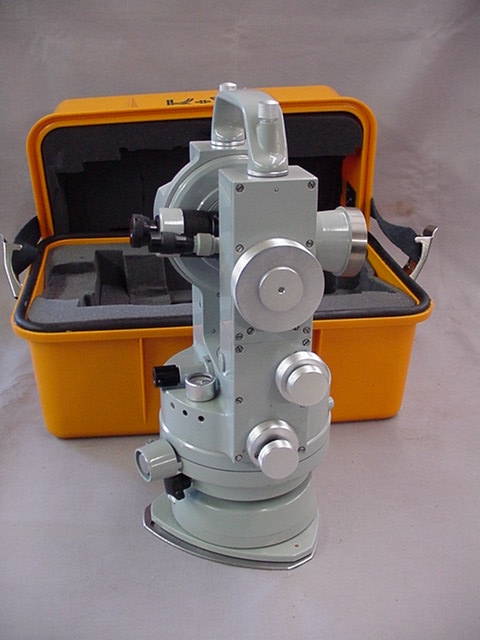

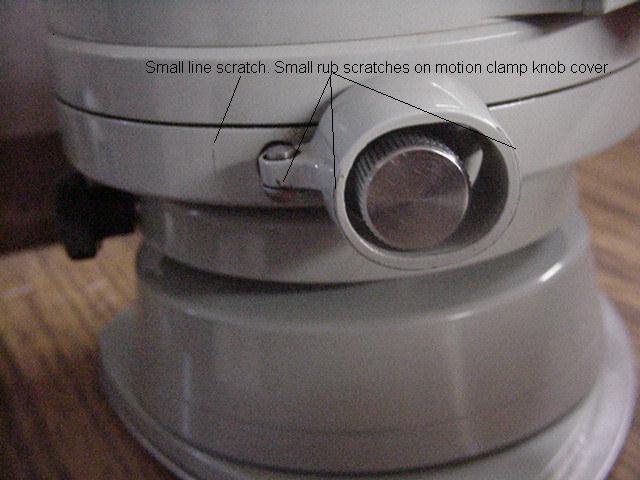

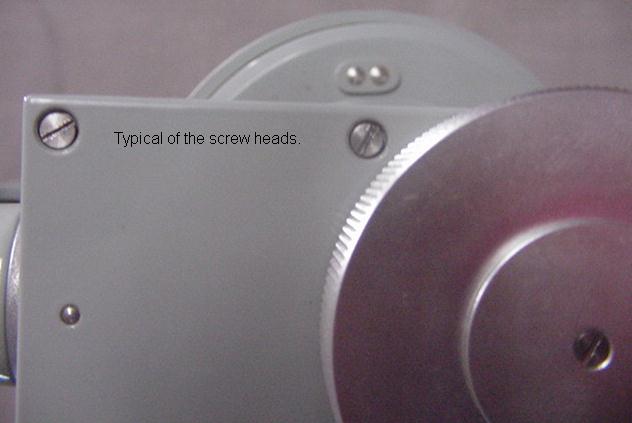

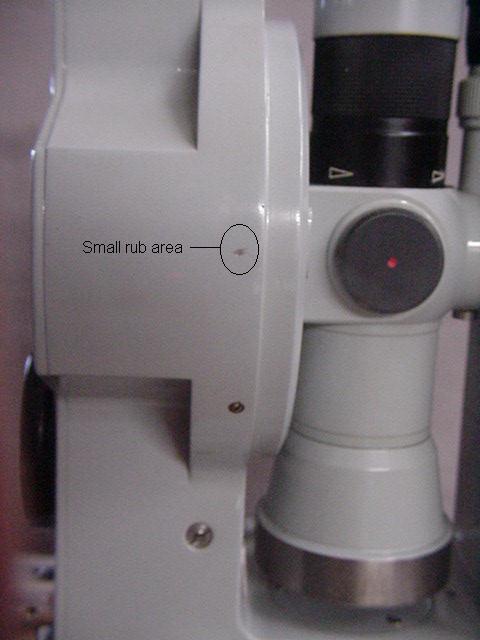

3994 Theodolite, Zeiss, Model TH2, 1 second, with quick adjusting ball base. In K&E plastic case.

Please refer to the three photos included for condition. They are typical and also show the
  only apparent scratches to the finish. The lenses etc. are excellent, no scratches
  or coating problems. Every thing functions except seeing the vertical and horizontal circles.
Excellent + Condition, except it needs light path adjustment and calibration.    5/8" X 11 threads
. PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  $1750.00 price reduced to $900.00. sold as is, no returns.
.

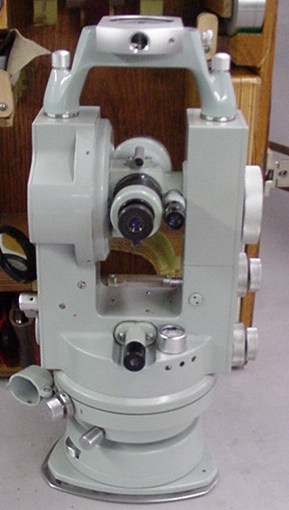

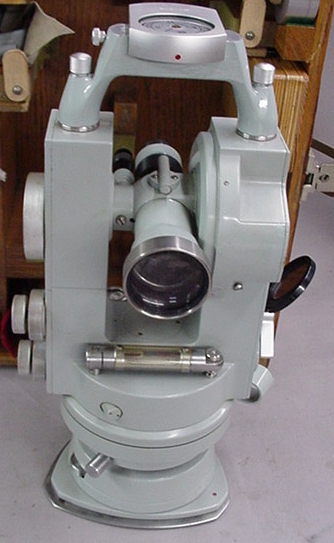

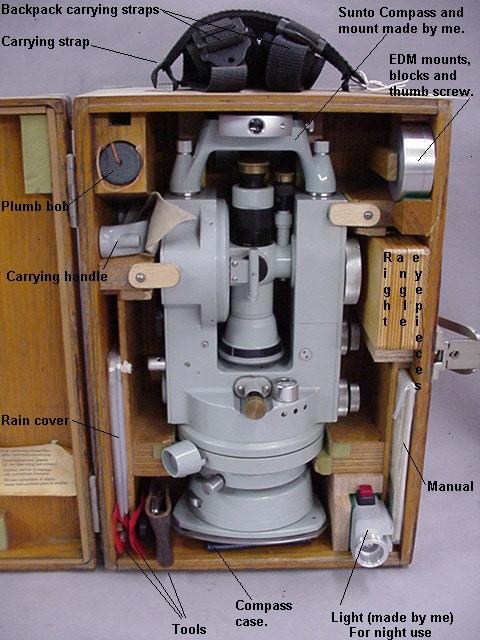

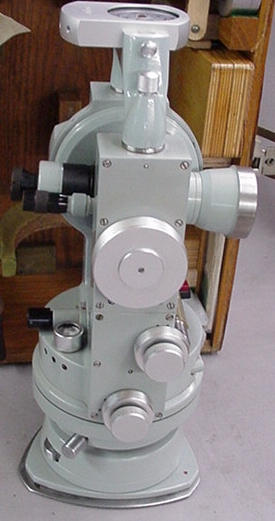

4022 Theodolite, Zeiss, Model TH2, 1 second, with quick leveling ball base, lighting

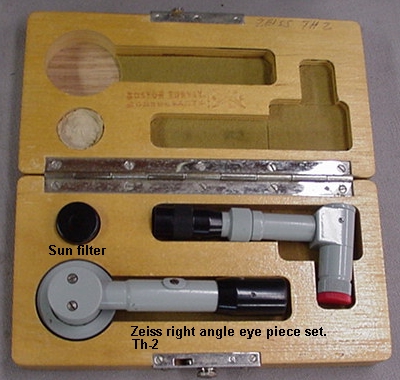

system, compass, right angle eye piece set and carrying handle. Complete in wood
box with all accessories and carrying straps. Ca 1960. 5/8" X 11 threads  Great Set!!
excellent +++ except it needs light path work in order to view the horizontal circle.
.  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO
.  $3000.00 Price reduced to $1500.00 sold as is.
.

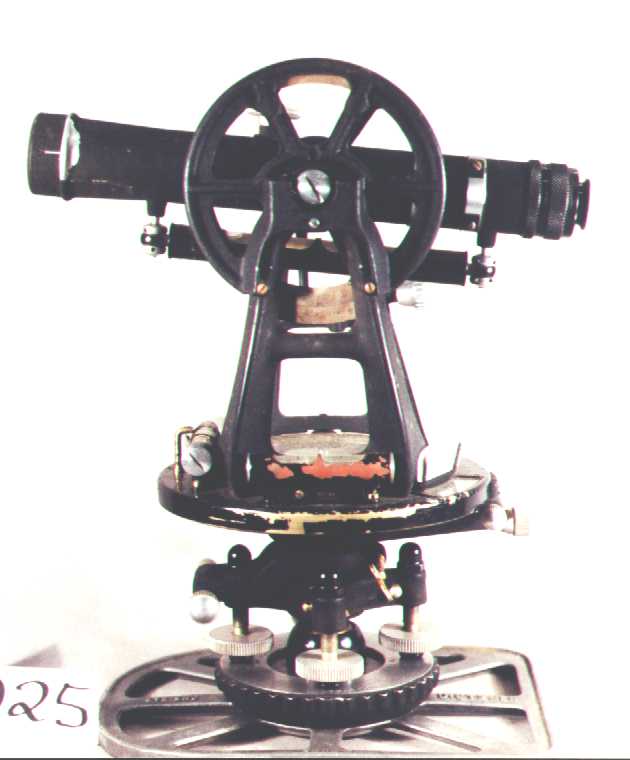

4025 Transit, Dietzgen, Model 6100, 30 second, 6¼" horizontal circle,
Ca 1970. In a wood box. 3½" X 8 threads   PHOTO   $1000.00
.

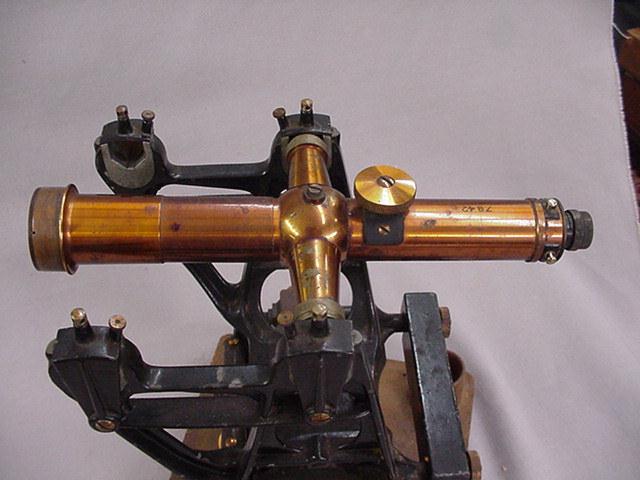

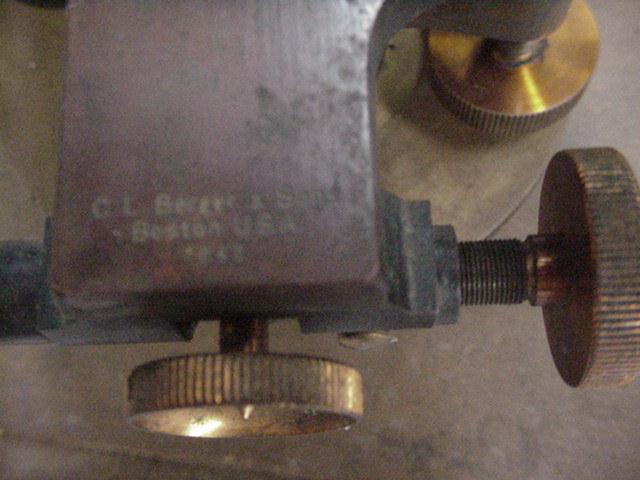

4029 Transit, C. L. Berger & Sons, Nadir tunnel transit with duplex standards for vertical
sighting, with counter weight. Striding level is missing.. Made without horizontal or vertical circle.
Ca 1910. One of two known to exist, and one of four known to have been made.
Made for NY City Water Board. Copy of original Berger order sheet will be included.
. In Berger mahogany box that is probably not original to the transit.  $4,000.00
   PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO
   PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO
.

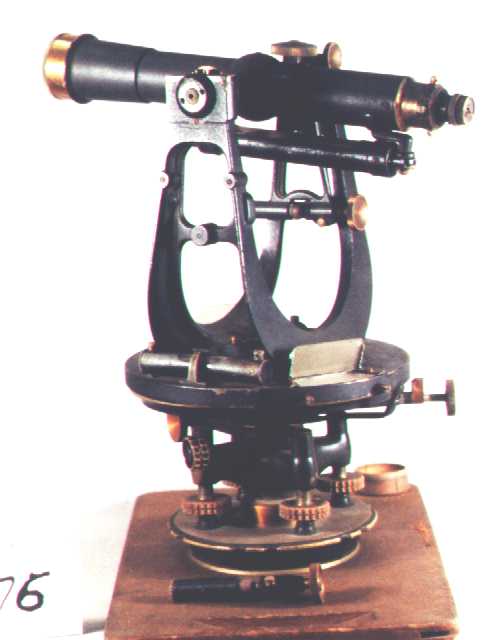

4076 Transit, C. L. Berger & Sons. No vertical circle. In mahogany box.
Needs work.  Sold as is.   PHOTO     $ 400.00
.

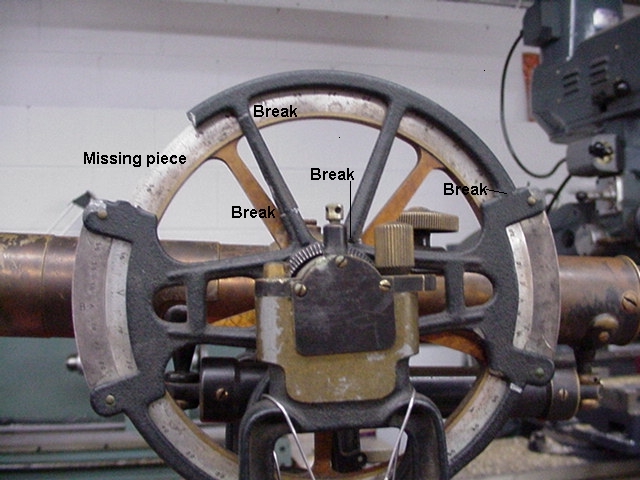

4081 Theodolite, C. L. Berger & Sons. No vertical circle. In mahogany box.
Needs work.  Sold as is.   PHOTO   PHOTO  PHOTO  PHOTO   $600.00
.
4088 Transit,  Heller & Brightly, with quick leveling base. Ca 1875, No Box.
In need of repair, Price is the finished price.   $1500.00
.
4089 Transit, Heller & Brightly, Ca 1875. No box.
In need of repair, Price is the finished price.     $1500.00
.

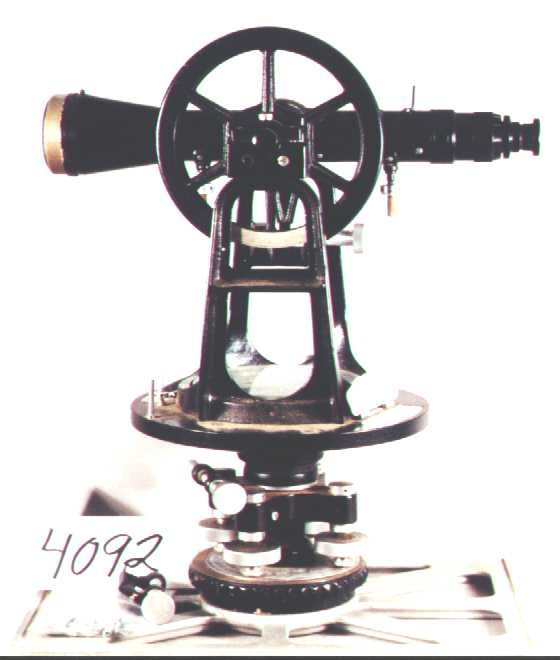

4092 Transit, Lietz/Sokkisha. Ca. 1970. No box. Needs work.
3½" X 8 threads   Sold as is.  PHOTO      $300.00
.
4093 Section-meter, Path, model SM401. New Never Used. with rod target
for range pole, and instruction manual. Used for making cross sections
directly onto it's own drawing board. Complete in wood box. Ca 1960.
  A NEAT INSTRUMENT-- NEARLY EXPERIMENTAL!! Very few made PHOTO
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO $1000.00
