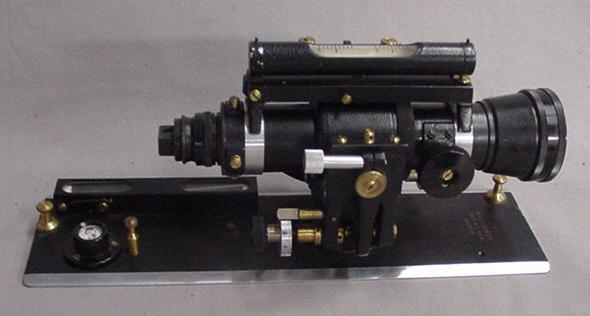

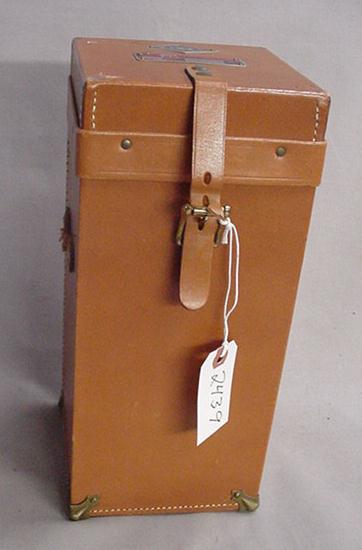

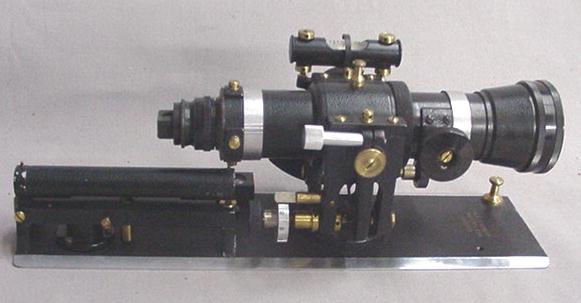

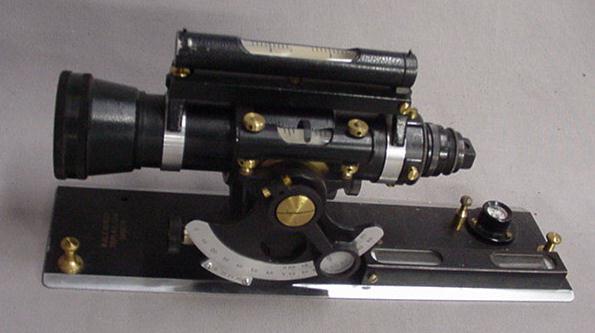

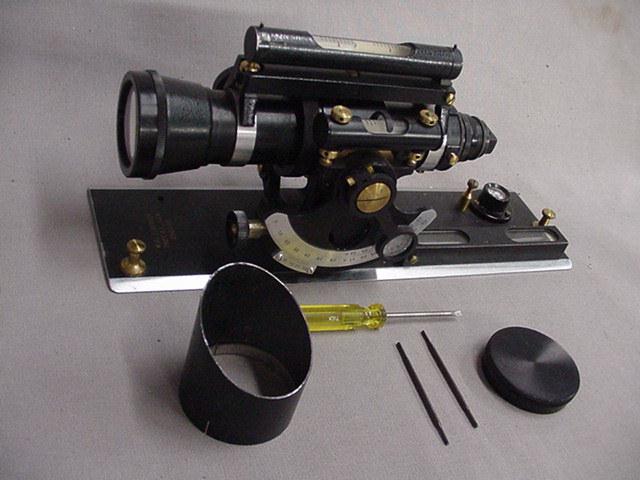

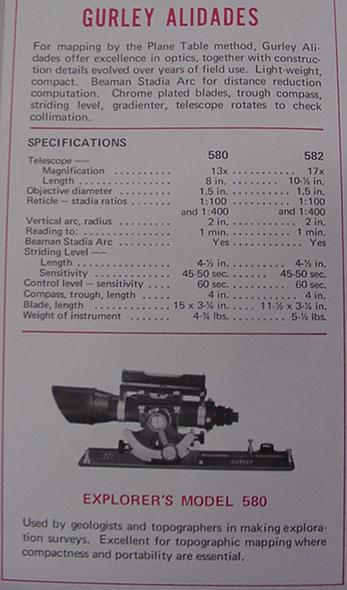

2439 Alidade, W. & L. E. Gurley, model 580 Explorer's Alidade, with lens cap, sunshade,

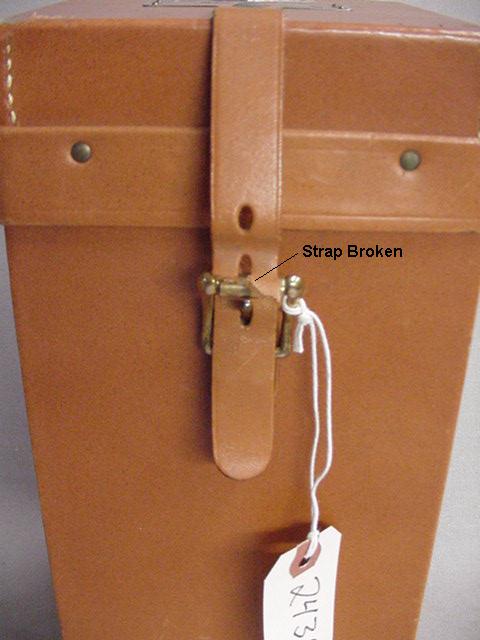

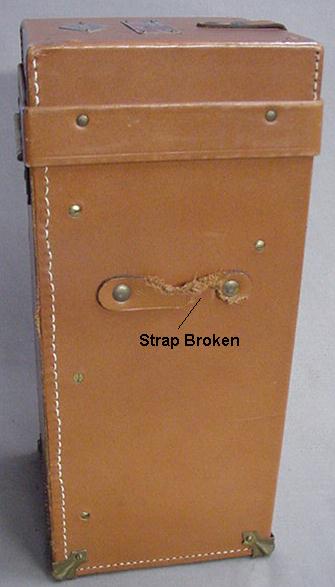

  two adjusting pins, screw driver, copy of manual, and box, Box has torn leather closing
  strap and torn leather box carrying strap guide. No box carrying strap.
  Near new condition and calibrated, see photos for more information. ca. 1959
   PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO      $600.00
.
2440 Alidade, W. & L. E. Gurley, model 580 Explorer's Alidade, with lens cap, sunshade,
SOLD two adjusting pins, screw driver, copy of manual, and box, No box carrying strap.
  Near new condition and calibrated, see photos for more information. ca. 1959
   PHOTO   PHOTO    PHOTO    PHOTO    PHOTO    PHOTO     $600.00
.
2441 Plane Table, make unknown, 24 inches X 31 inches, back plate has standard
SOLD 5/8" X 18 threads per inch for use on all Johnson head tripods, with 6 paper
  hold down thumb screws. In near new condition.  PHOTO   PHOTO   $250.00
.
2445 Alidade, Keuffel & Esser, model 76-0030 Expedition Alidade, 1:100 stadia.
SOLD With lens cap, sunshade, combination tool, adjusting pin, and box. ca. 1973
  Near new condition and calibrated, see photos for more information
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  $600.00
.
2446 Alidade, Keuffel & Esser, model 5093A Geological Survey Alidade, 1:100 stadia.
SOLD With lens cap, sunshade, screw driver, spare bubbles and box, box strap broken.
  Near new condition and calibrated, see photos for more information. ca. 1952
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO    $600.00
.
2447 Alidade, Teledyne-Gurley, model 582 Standard Alidade, with lens cap, sunshade, box
  Near new condition and calibrated, see photos for more information. ca 1970's
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  $600.00
.
2448 Alidade, David White, model 9082 Type  B Miniature Alidade, Near copy of K&E
SOLD with spare bubble, lens cap, sun shade, 2 adjusting pins, box and copy of manual.
  Very near new condition and calibrated, see photos for more information. ca. 1940's - 50's
  PHOTO  PHOTO  PHOTO  PHOTO  $600.00
.
2451 Alidade, W. & L. E. Gurley, model 580 Explorer's Alidade. ca 1948
SOLD with lens cap, sunshade, and case in fair condition.
  condition good, calibrated   PHOTO  PHOTO  PHOTO  $400.00
.
2459 Alidade,  W. & L. E. Gurley, model 584C US Geological Survey Standard Alidade, ca. 1920.
  with sun shade, lens cap, box, Excellent condition and calibrated, see photos for more information.
  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  PHOTO  $700.00
.
2491 Plane Table Leveling Head, Wm. Young & Sons (not marked) 1.800" X 12 Threads per inch
  In near new condition.   PHOTO  PHOTO $400.00
.
2492 Tripod, Make Unknown, Johnson Head Military extension leg, Extends from 34' to 59", Oak,
SOLD For plane tables with standard 5/8" X 18 thread back plate. With thread protector
  Excellent condition  PHOTO  PHOTO $250.00
.
2501 Tripod, W. & L. E. Gurley, Johnson Head extension leg, Extends from 34' to 59", Oak,
  Wide frame, For use with large plane tables with standard 5/8" X 18 threaded back plate.
  with thread protector cap. Excellent condition  PHOTO  PHOTO  $300.00
.
2515 Tripod, Lietz, model 34C, Johnson head for large plane tables, heavy  wide frame stiff leg,
  with thread protector cap. 5/8" X 18 thread. In excellent condition.    PHOTO    PHOTO    PHOTO  $250.00
.
3768 Compass, for plane table,  needle length 4 inches, base size 1 inch X 6 inches.
. PHOTO   $50.00
.
3769 Alidade, Hilger & Watts, Microptic, Model 6200-A100,  Glass optically read one minute
  vertical circle, Horizontal reduction scale and vertical reduction scale.
15X Telescope, vertical and horizontal 1:100 stadia, with telescope vial. ca 1970. With sun
shade.  No compass.   In dovetailed mahogany box painted red.
EXCELLENT CONDITION.  PHOTO   PHOTO   PHOTO   PHOTO   PHOTO      $800.00
.
3998 Tripod head, Heller & Brightley, for large plane table. In box. Ca 1880.
RARE!!!  Attaches to 4 screw leveling base that is missing and would be
in a separate box.     PHOTO    500.00
.
4006 Alidade, Buff & Buff, set of shop samples or prototype for gimbaled articulated
  "Alidade or Indicator for Ships' Compasses", This unmarked set came from Buff & Buff
made of brass, in wood box.  ca. 1902.  PHOTO  a PDF file of the Patent  $500.00
.  Patented by W. S. Burgess June 23, 1903, A copy of which is included.
  PHOTO   PHOTO   PHOTO   PHOTO   PHOTO   PHOTO
  Written in pencil on the box lid and very difficult to see and read is;
  "Shop Samples Burgess Ailrcam Alidade Property of Buff & Buff Mfg. Co.
  Aibicaus (?) Frank B. Dow Jr."
.
