2839 Pantograph, Dietzgen, ca. 1930, made of nickel silver, model 1893, reducing 20:1 to 1:1
  and enlarging 1:1 to 1:20 in all ratios, the mounting stand is missing. The hanging wires are with it.
  I think it is complete other wise. Excellent Condition, very large, box is 70" long.
  PHOTO   PHOTO   PHOTO   PHOTO   PHOTO    PHOTO   PHOTO   PHOTO   PHOTO    $1000.00
.
2926 Adjustable Parallel Rule, Mayline model 5501-12, black phenolic plastic,
12 inches long, new in box.   PHOTO  $20.00
.
2927 Adjustable Parallel Rule, Mayline model 5501-15, black phenolic plastic,
. 15 inches long, new in box.   PHOTO  $25.00
.
3015 Drafting Compass, inking,  3" spring bow, in original oiled paper wrap, with
light rust, there are nine of these at this price of  $ 3.00 each  PHOTO
.
3021 Slide Rule, Pickett, Trainer, model 120, plastic
.  PHOTO  $20.00
.
3022 Slide Rule, Pickett, Trainer, model 120, plastic
.  PHOTO  $20.00
.

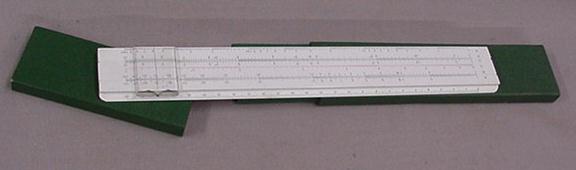

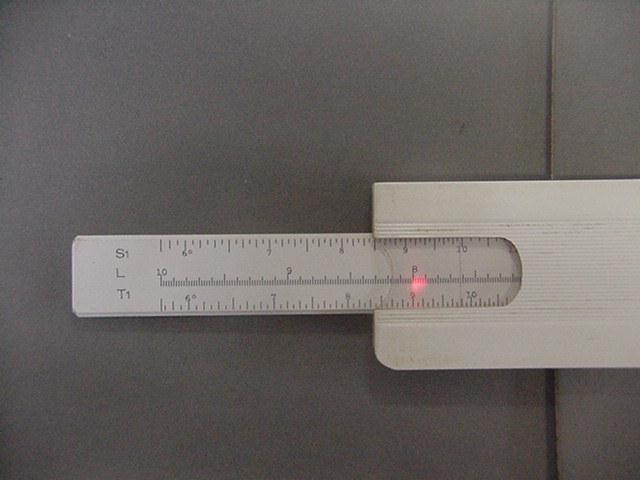

3023 Slide Rule, Fuji, model 900, made in Japan, plastic.
. PHOTO   PHOTO  PHOTO   PHOTO  PHOTO   PHOTO   PHOTO     $20.00
.
3024 Slide Rule, Post, model 1447, bamboo.
. PHOTO  $20.00
.

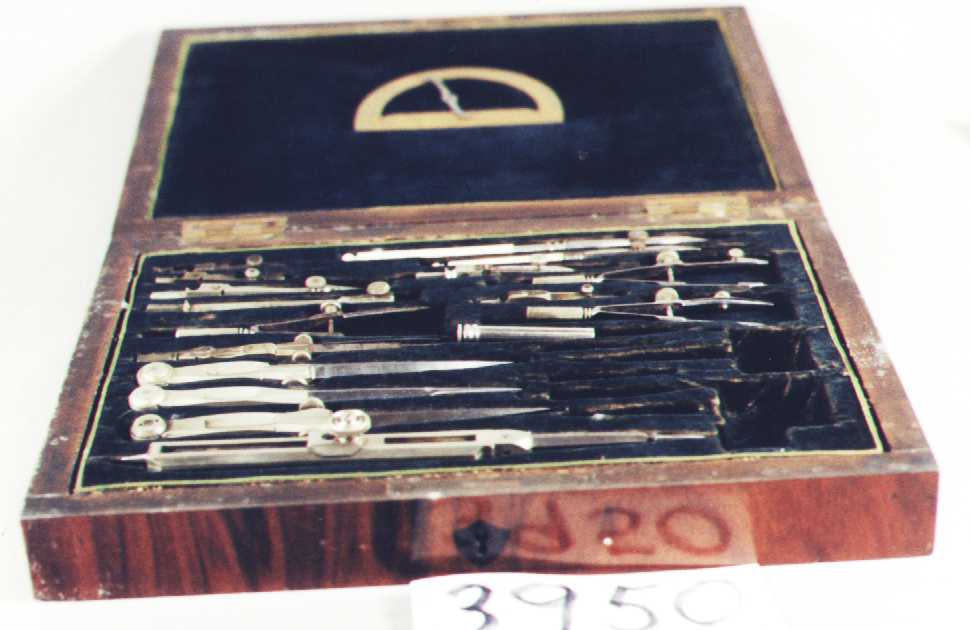

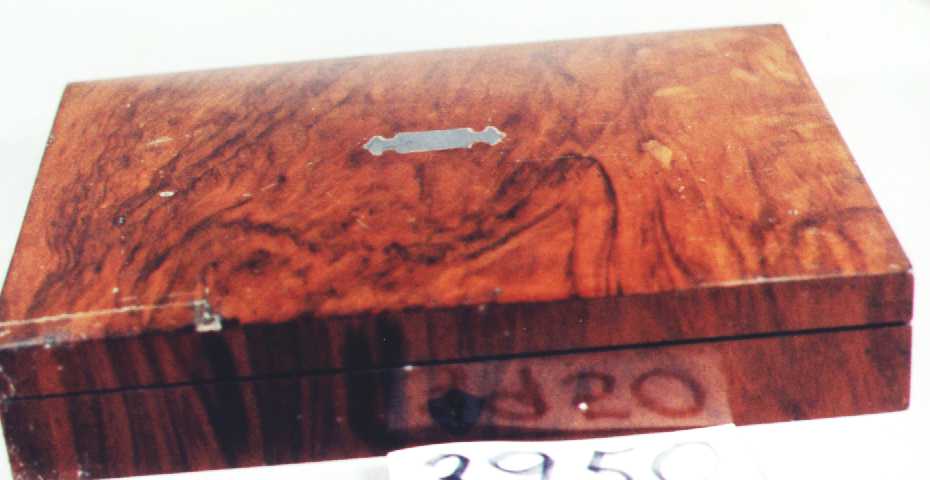

3950 Drafting set, domed lid highly figured walnut box with lift out tray, 2 ivory
ink pens, proportional dividers, 3 bow compasses and calipers
ca. 1860      PHOTO  PHOTO   PHOTO  PHOTO   PHOTO  PHOTO
. PHOTO  PHOTO  PHOTO  PHOTO    PHOTO   $900.00
.
