4160 Jig Transit, Keuffel & Esser, 9092-1A (new model number 71-1010), includes
  71-1111 Optical Micrometer reads 0 to ± 0.100 inches, 71-3250 coincidence
  level to telescope, adjusting tools, and wood case. Calibrated, and ready for use. $2500.00
  Please refer to the photos for more detail and specifications.
  PHOTO   PHOTO   PHOTO  PHOTO   PHOTO   PHOTO  PHOTO   PHOTO
.
4162 Collimator, Keuffel & Esser, Straightness Line of Sight, Special Order
  2.2500 diameter X 17" long. Contains 4 reticules at 0, 5 feet, 100 feet and
  Infinity target  ca. 1964, excellent condition with box. PHOTO  4000.00
.
4166 Line of Sight Telescope, Keuffel & Esser, 71-2062,  with built in
  auto reflection target, auto collimation light unit 110V, and case.
  Excellent condition. Calibrated  PHOTO  PHOTO 2000.00
.
4170 Collimator, make unknown, (came from K&E) cross line reticule at infinity.
  (set up as vertical collimator) no light source, in excellent condition.  PHOTO 400.00
.

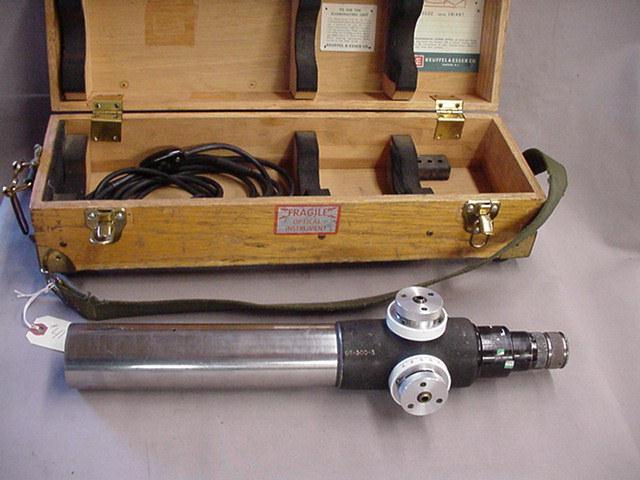

4171 Alignment Telescope, Keuffel & Esser, 9099-2, same as 71-2022,
focus from 0 to Infinity, micrometers 0 to + and - 0.050 inches
no auto reflection target, built in auto collimation, illumination unit
included (not shown), with case, ca. 1955, Excellent condition, calibrated
 2.2498 diameter barrel,   PHOTO    2000.00
.

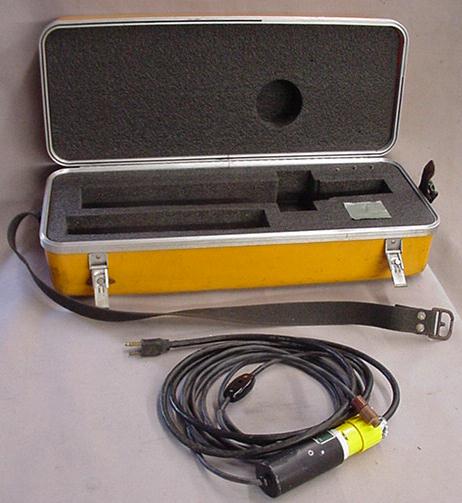

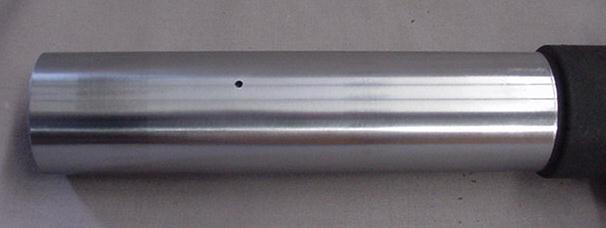

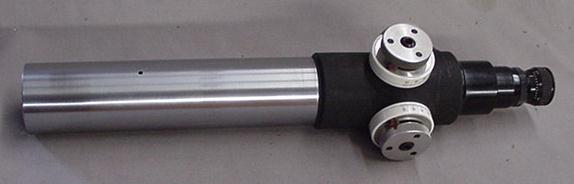

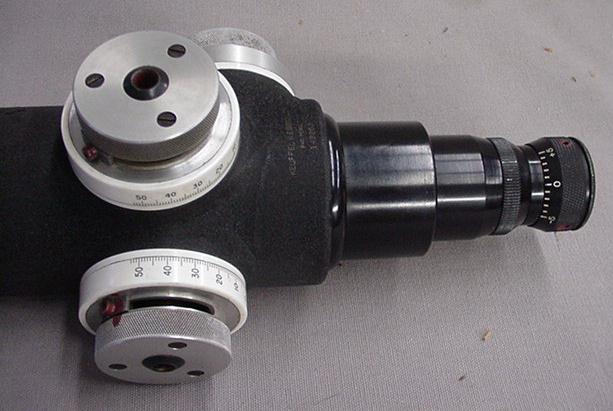

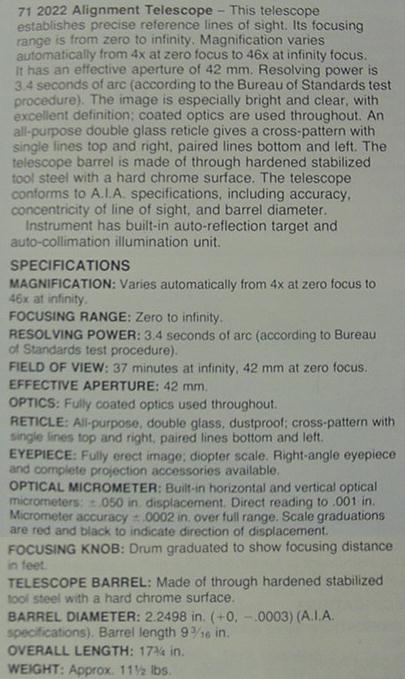

4172 Alignment Telescope, Keuffel & Esser, 9099-2, same as 71-2022,
2.2498 diameter barrel, focus from 0 to Infinity, micrometers 0 to + and - 0.050 inches
. no auto reflection target, built in auto collimation, illumination unit
included (not shown), with case, ca. 1956,  Excellent condition, calibrated
PHOTO   PHOTO   PHOTO  PHOTO   PHOTO   $2000.00
.
4175 Collimator, make unknown, (came from K&E, maybe by Davidson Optronics)
  bi-filer reticule at infinity. 2.000 diameter barrel X 12 ½ inches, straight line eyepiece,
  no light source. In excellent condition.   PHOTO    1000.00
.
4181 Collimator, Askania, bi-filer reticule, no light,  no mount .   PHOTO  300.00
.
4182 Collimator, Askania, cross line reticule, no light,  no mount .   PHOTO  300.00
.
4188 Optical Micrometer, Keuffel & Esser, 71-1110 for use with Jig Transit
1.468 inside diameter, Near new condition   PHOTO  475.00
.
4189 Mirror, Keuffel & Esser, model 71-1135, threads on to jig transit telescope axle ends.
  mirror is 1 13/16" X 4 13/16", with cap, it is in EXCELLENT ++ CONDITION,
  PHOTO  PHOTO  $300.00
.
4191 Optical Micrometer, Keuffel & Esser, 71-1110 for use with Jig Transit
  1.468 inside diameter, Near new condition   PHOTO  475.00
.
4192 Alignment Collimator, Keuffel & Esser, 9092-4, ( same as 71-4010),
2.2498 diameter X 12" long. Infinity target is graduated every 30
seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
. Excellent condition, with oak box   PHOTO  1950.00
.
4193 Alignment Collimator, Keuffel & Esser, 9092-4, ( same as 71-4010),
2.2498 diameter X 12" long. Infinity target is graduated every 30
seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
 Excellent condition,  with oak box   PHOTO  1,950.00
.
4194 Lamp Housing, Keuffel & Esser, 71-5520,  for 71-4010 Collimator,
110V, also fits spherical adapters.   PHOTO   200.00
.

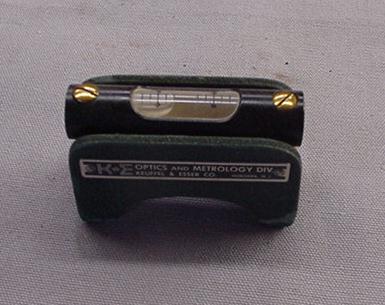

4202 Cross Level,  Keuffel & Esser, model 71-3205, for use with
  Alignment Telescopes, In Excellent condition.  PHOTO   $250.00
.
4205 Polygon 40 degree, Hilger Watts, with box, in excellent ++
  Condition.  PHOTO        900.00
.
4218 Alignment Collimator, Keuffel & Esser, 71-4010,
. 2.2498 diameter X 12" long. Infinity target is graduated every 30
. seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
 Excellent condition, PHOTO    1,850.00
.
4219 Lamp Housing, Keuffel & Esser, 71-5520, for 71-4010 Collimator,
. also fits spherical adapters.  110V PHOTO   200.00
.
4220 Alignment Collimator, Keuffel & Esser, 71-4010,
. 2.2498 diameter X 12" long. Infinity target is graduated every 30
. seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
Excellent condition,  PHOTO  1850.00
.
4221 Lamp Housing, Keuffel & Esser, 71-5520, for 71-4010 Collimator,
. also fits spherical adapters.  110V  PHOTO  200.00
.
4230 Line of Sight Telescope, Keuffel & Esser, 71-2062,  with built in
. auto reflection target, auto collimation unit 110V, and case.
. Excellent condition. Calibrated  PHOTO  2000.00
.
4233 Line of Sight Telescope, Zeiss, barrel diameter 56mm X 131mm
. long. in Excellent condition   PHOTO    1000.00
.
4262 Striding Level, Hilger Watts, coincidence type for
. alignment telescopes of 2.250 diameter  PHOTO  800.00
.
4279 Alignment Telescope, Taylor & Hobson, model 112/365/502,
  Eyepiece threads damaged, but working ok, with homemade box,
. Excellent condition otherwise, and Calibrated PHOTO  2000.00

4280 Alignment Telescope,  Taylor & Hobson, model 112/365-,
.  with case fitted for auto collimation adapter, not included.
. in Excellent condition  PHOTO  3000.00
.
4290 Square Penta Prism, Hilger Watts, Excellent condition,
.  in box     PHOTO     800.00
.
4320 Collimator, Askania, no light,  on mount .   PHOTO  800.00
4362 Auto Collimator Hilger Watts TA130-1.
. 1.500 inches in diameter.   PHOTO   600.00
.
4363 Auto Collimator Hilger Watts TA130-1.
. 1.500 inches in diameter.   PHOTO  600.00
.
4364 Auto Collimator Hilger Watts TA130-1.
. 1.500 inches in diameter.  PHOTO   600.00
.
4365 Auto Collimator, Hilger Watts TA130-1.
. 1.500 inches in diameter.  PHOTO  600.00
.
4366 Cathetometer Telescope,  Hilger Watts TA18-1    PHOTO   200.00
.
4367 Microptic Auto Collimator, Hilger Watts, Auto Collimating
.SOLD .2 second micrometer, sold as is   PHOTO    500.00
.
